Short Description:

Product Description Comparison Table:JIS Standard Channels: Dimensions (mm) Unit Weight (kg/m) Dimensions (mm) Unit Weight (kg/m) 50X25X(3.0-5.0)X6.0 2.37-3.46 125X65X5.5X8.0 12.91 75X40X3.8X7.0 5.30 125X65X6.0X8.0 13.40 75X40X4.0X7.0 5.60 150X75X5.5X7.3 14.66 75X40X4.5X7.0 5.85 150X75X5.7X10.0 16.71 75X40X5.0X7.0 6.92 150X75X6.0X10.0 17.90 100X50X3.8X6.0 7.30 150X75X6.5X10.0 18.60 100X50X4.2X6.0 8.03 150X75X9X12.50 24.0 100X...


下载为PDF

Product Detail

Product Tags

Product Description

比较表：
JIS Standard Channels:

尺寸（mm） 单位重量（kg/m） 尺寸（mm） 单位重量（kg/m）
50X25X(3.0-5.0)X6.0 2.37-3.46 125X65X5.5X8.0 12.91
75X40X3.8X7.0 5.30 125x65x6.0x8.0 13.40
75x40x4.0x7.0 5.60 150X75X5.5X7.3 14.66
75X40X4.5X7.0 5.85 150x75x5.7x10.0 16.71
75x40x5.0x7.0 6.92 150X75X6.0X10.0 17.90
100X50X3.8X6.0 7.30 150X75X6.5X10.0 18.60
100x50x4.2x6.0 8.03 150x75x9x12.50 24.0
100x50x4.5x7.5 8.97 200x80x7.5x11.0 24.6
100X50X5.0X7.5 9.36 200X90X8.0X13.5 30.3
125X65X5.2X6.8 11.66 250x90x9.0x13.0 34.6
125X65X5.3X6.8 12.17 300X90X9.0X13.0 38.1


GB Standard Channels:

大小 Specification(mm) Theory Weight
（kg/m）
h b d
5# 50 37 4.5 5.438
6.3# 63 40 4.8 6.634
8# 80 43 5 8.045
10＃ 100 48 5.3 10.007
12# 120 53 5.5 12.059
12.6 126 53 5.5 12.319
14#a 140 58 6 14.535
14#b 140 60 8 16.733
16＃a 160 63 6.5 17.24
16＃b 160 65 8.5 19.752
18#a 180 68 7 20.174
18#b 180 70 9 23
20#a 200 73 7 22.637
20#b 200 75 9 25.777
22#a 220 77 7 24.999
22#b 220 79 9 28.453
25#a 250 78 7 27.41
25#b 250 80 9 31.335
28＃a 280 82 7.5 31.427
28＃b 280 84 9.5 35.832
30＃a 300 85 7.5 34.463
30＃b 300 87 9.5 39.173
32#a 320 88 8 38.083
32#b 320 90 10 43.107
36#a 360 96 9 47.814
36#b 360 98 11 53.466
40 # 400 100 10 58.928
40 # b 400 102 12.5 65.208


EN Standard Channels:

大小 尺寸（mm） 单位重量（kg/m）
UPN50 50X25X5X6.0 3.86
UPN80 80X45X6X8.0 8.65
UPN100 100X50X6X8.5 10.6
UPN120 120X55X7X9.0 13.4
UPN140 140X60X7X10.0 16.0
UPN160 160X65X7.5X10.5 18.8
UPN180 180X70X8X11.0 220
UPN200 200x75x8.5x11.5 25.3


European Economical Channels:

大小 尺寸（mm） 单位重量（kg/m）
UPE80 80x40x4.5x7.4 7.05
UPE100 100X46X4.5X7.6 8.59
UPE120 120X52X4.8X7.8 10.4
UPE140 140X58X4.9X8.1 12.3
UPE160 160X64X5.0X8.4 14.2
UPE180 180X70X5.1X8.7 16.3
UPE200 200X76X5.2X9.0 18.4

Company Information

COMPANY PROFILE

Tangshan Yuxuan International Trading Co。，Ltd是一家大型企业，主要关注生产。钢铁产品的国内分布和出口。Yuxuan Steel成立于2014年，覆盖了60,000平方米的土地面积，注册资本为500万美元。随着中国和国外客户的出色潮流，我们的业务范围变得更大，更大，并在建立以来取得了出色的成就，并取得了出色的成就，并取得了出色的成就。到目前为止，Yuxuan Steel拥有192人的工作人员，并在2014年通过了ISO9001：2000质量管理Suystem认证。所有尺寸的库存平均为30,000吨，这些产品已在全球范围内出售。我们的销售额超过120万吨，包括2.6亿美国Yuxuan Steel在Tangshan出口区排名前5名，在钢铁出口公司中，全国排名前30位。

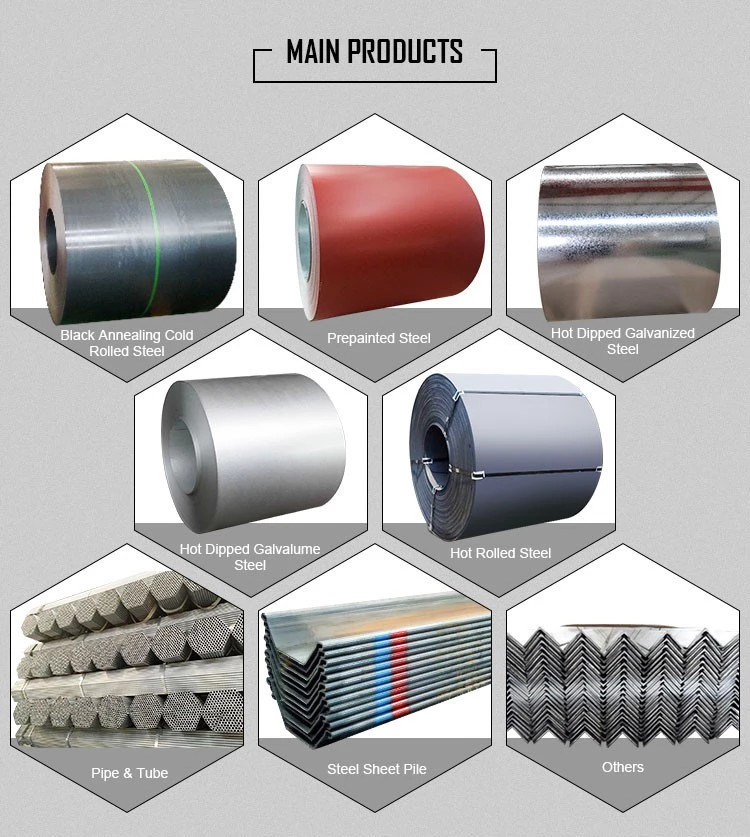

The main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars. meanwhile, we are widely develop factory of wire rod, deformed steel bar and square bar which make yuxuan open up international market and bring about extraordinary dvelopment in export business.

Our company strictly follows the domestic and international trading practices, and view credit as life, we will offer entire customers our best quality and service. the company has established a comprehensive of service system and technical support system, to provide customers not only highest quality products but also comprehensive after-sales service.

We are firmly conviced that we will have a much more promising future together!

JIS Ss400通道
JIS Ss400通道
JIS Ss400通道
FAQ

Q1,How to get an accurate quotation?

产品细节尺寸和长度

Product quantities.
产品材料等级

Q2,How to contact with us?

Trade manager online,chat with me directly.
Send an inqury to us.
打电话给我们：+86-15690517810


Q3,What other items from this supplier?
角线结构钢，H梁，I梁，通道。
正方形，矩形，圆形空心截面管。
Steel plate,checker plate,corrugated sheet,steel coil.
Flat,square,round bar.
Screw,Stud bolt,bolt,nut,washer,flange and other related pipe kits.
