Structural Steel H Beam A36, Ss400, Q235B, Q345b, S235jr, S355

Short Description:

箴duct Description H section steel is a new type of economic construction steel. Economic and reasonable h-beam section shape, good mechanical performance, rolling section on each extension point is relatively uniform, small internal stress, compared with ordinary beams, with large section modulus, light weight, save metals etc.. mainly used for large buildings that big cutting ability, good cross section stability (such as factories, high-rise building, etc.), and Bridges, ships, lifting...

Send email to us Download as PDF

箴duct Detail

箴duct Tags

箴duct Description

H section steel is a new type of economic construction steel.Economic and reasonable h-beam section shape, good mechanical performance, rolling section on each extension point is relatively uniform, small internal stress, compared with ordinary beams, with large section modulus, light weight, savemetals etc.. mainlyused for large buildingsthat big cutting ability, good cross section stability (such as factories, high-rise building, etc.), and Bridges, ships, lifting transportation machinery, equipment foundation, support, foundation pile, etc
.Hot rolled structural steel H beam

Grade: Q235B, Q235, Q345B, SS400, A36
Standard: JIS/ ASTM/ GB/ BS/ ...
Length: 5.8m, 6m, 12m, or as the customers' requirements. Structural Steel H Beam A36, Ss400, Q235B, Q345b, S235jr, S355

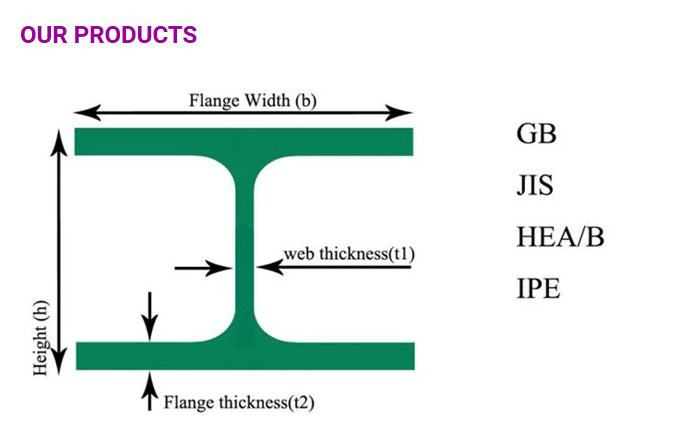

H beam Section size (mm)			Weight (kg/m)
Height×Breadth	Web thickness	Flange thickness	Weight (kg/m)
100×100	6	8	16.9
125×125	6.5	9	23.6
150×150	7	10	31.1
175×175	7.5	11	40.4
200×200	8	12	49.9
250×250	9	14	71.8
300×300	10	15	93.0
300×300	15	15	105.0
350×350	12	19	134.9
400×400	13	21	171.7
148×100	6	9	20.7
194×150	6	9	29.9
244×175	7	11	43.6
294×200	8	12	55.8
340×250	9	14	78.1
390×300	10	16	104.6
440×300	11	18	120.8
482×300	11	15	110.8
488×300	11	18	124.9
582×300	12	17	132.8
588×300	12	20	147.0
100×50	5	7	9.3
125×60	6	8	13.1
150×75	5	7	14.0
175×90	5	8	18.0
198×99	4.5	7	17.8
200×100	5.5	8	20.9
248×124	5	8	25.1
250×125	6	9	29.0
298×149	5.5	8	32.0
300×150	6.5	9	36.7
346×174	6	9	41.2
350×175	7	11	49.4
396×199	7	11	56.1
400×200	8	13	65.4
446×199	8	12	65.1
450×200	9	14	74.9
496×199	9	14	77.9
500×200	10	16	88.1
596×199	10	15	92.4
600×200	11	17	103.4
700×300	13	24	181.8
800×300	14	26	206.8
900×300	16	28	240.1

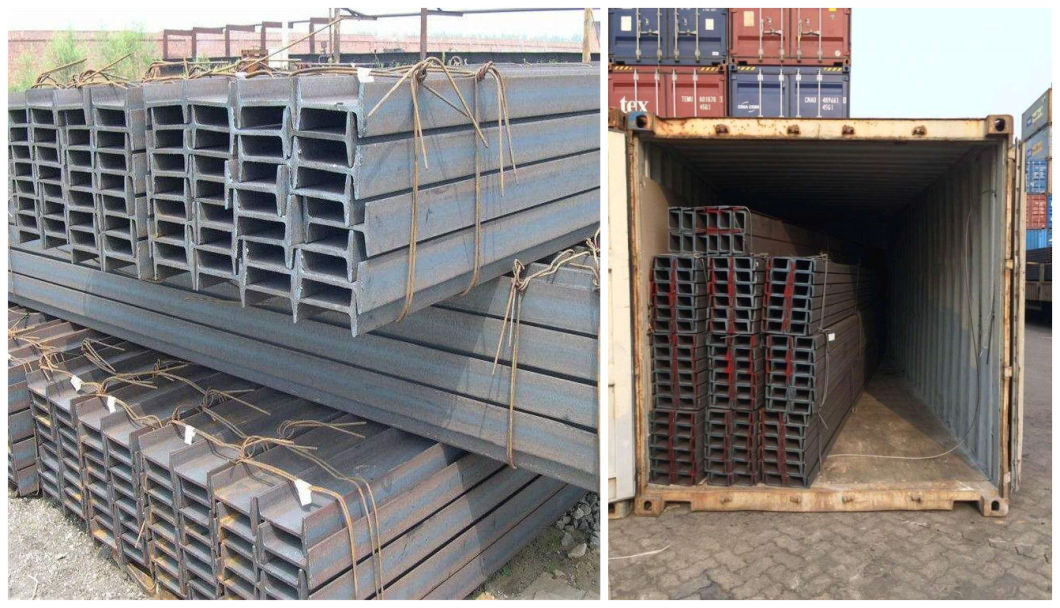

Packaging & Delivery:

Packaging details	1.Big order: in bulk
	2.Small order: packed by steel strips
	3.woven cloth with 7 slats
	4.according to the requirements of customers
	5. 20ft container can load 25 tons,5.8m Max 40ft container can load 26 tons,12M Max
Delivery	3-15 working days after received the deposit or L/C.
